Three Phase Oil Immersed Distribution Transformer

Key Features


Contact Us >
Description

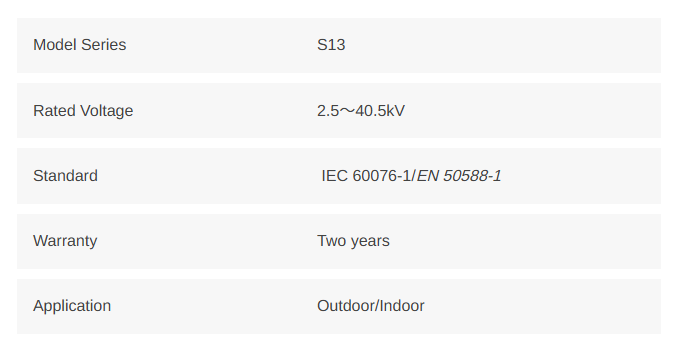

Specifications

Liquid-filled transformers are manufactured in accordance with the most demanding industry and international standards. Compliance with important standards, from IEC to VDE, is a matter of course, just as much as the exclusive use of high-quality materials, qualified employees implement the demanding standards in daily practice.



Standard Features

  • Product Range:15kVA-10000kVA, up to 44kV
  • System voltage: max. 36 kVA 200 BIL
  • Coolers: corrugated wall or radiator
  • Oil preservation: hermetically sealed or conservator/free breathing
  • Tap changer: off-circuit or on-load
  • Cooling medium: mineral oil, Midel
  • Steel type core clamping system
  • High voltage (HV) multilayer winding
  • Low voltage (LV) foil winding or layer winding
  • Winding materials aluminium or copper
  • High temperature class transformers
  • Low noise solution
  • Efficient transformers with reduced losses
  • Liquid-filled
  • Used in special conditions
  • Sophisticated facilities
  • Usage of wooden case
  • 3D package for drawings
  • Special test like Zero Sequence Impendence test
  • Cooling: ONAN, ONAN/ONAF, KFAF, KFW

         Tests

  • Voltage ratio. Polarity and phase relationship test on each tapping
  • Resistance of all windings
  • No-load current and no-load losses measurement
  • Load losses measurement at rated current and frequency
  • Impedance voltage measurement
  • Induced over-voltage and separate source voltage withstand tests
  • Impulse voltage withstand test
  • Noise level test
  • Oil leakage test
  • Overload test at 150% rated current for one hour after temperature rise test and hot resistance measurement of (HV - LV)

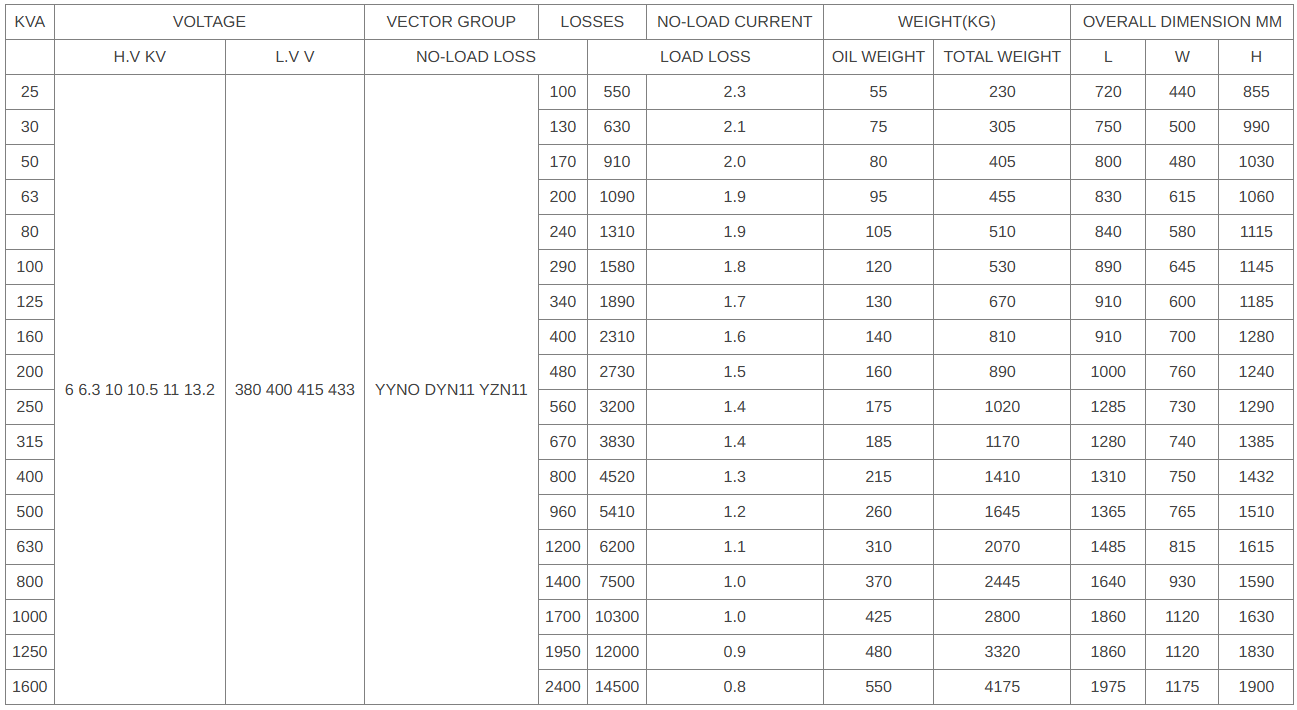

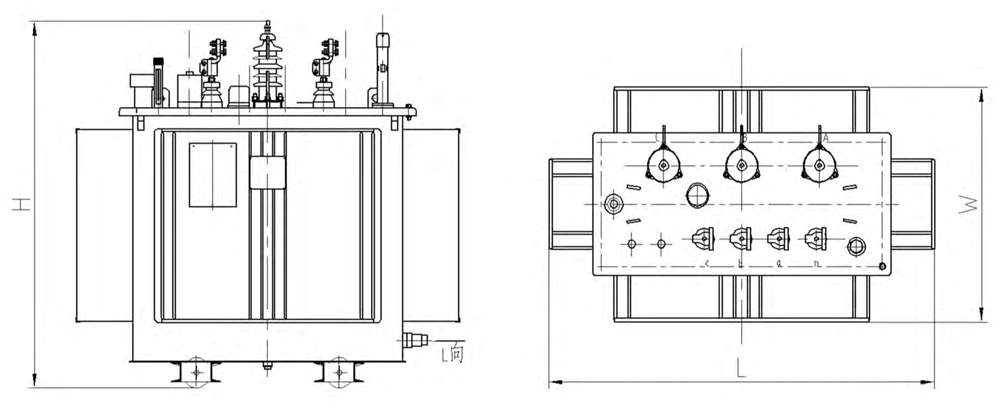

11KV Series




NOTE: *The above parameter is only subject to our standard.

Design, special requirement can be customized.

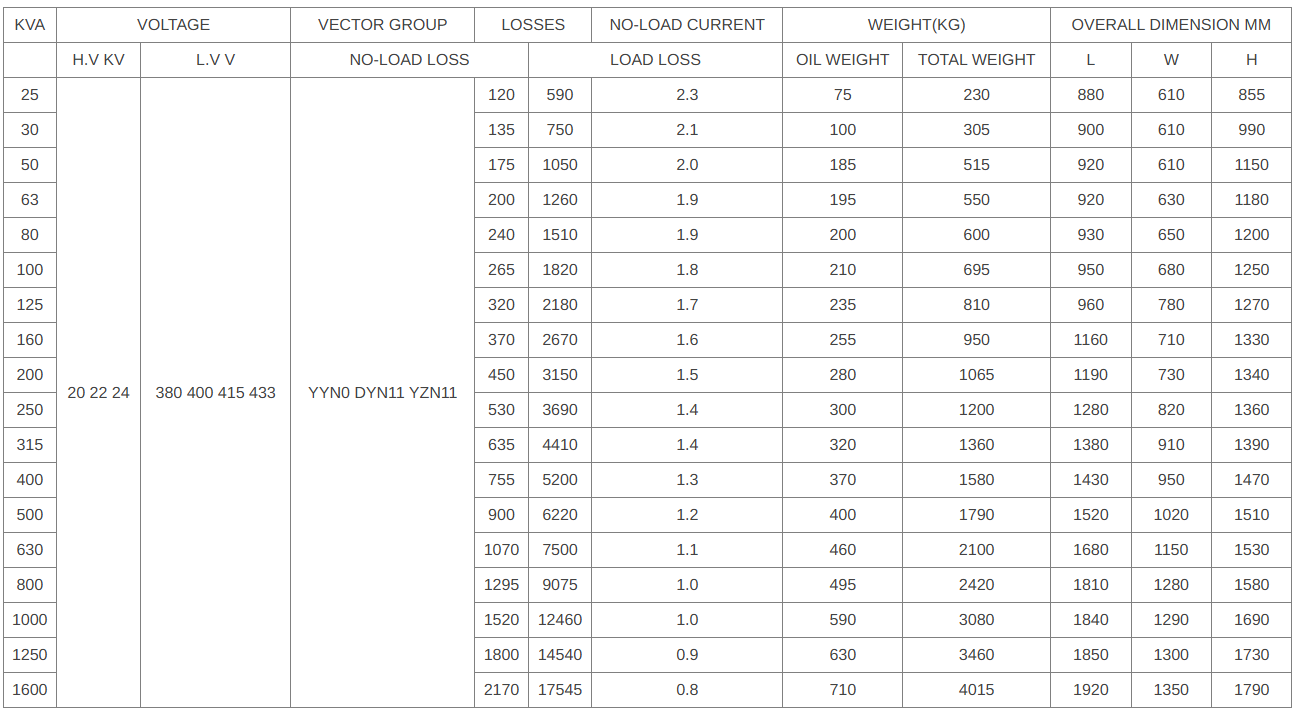

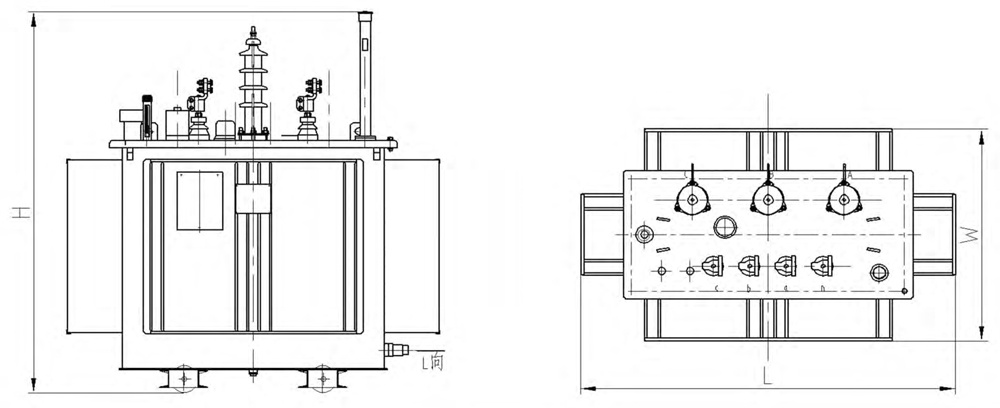

22KV Series





NOTE: *The above parameter is only subject to our standard.
Design, special requirement can be customized.
