Pad Mounted Transformer - Distribution Transformer - WE LEAD POWER

EN

PRODUCT

Pad Mounted Transformer

Key Features


Contact Us >
Description

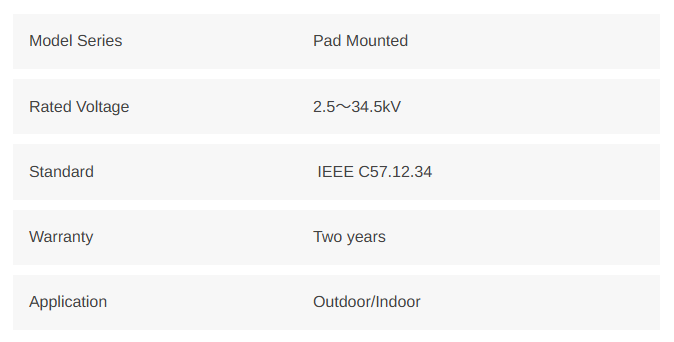

Specifications

General                                                                                                                                                                                                          The standard rating for these transformers ranges from 10 to 167 KVA for single phase, and 45 to 3000 KVA for three phase, with primary voltage ratings ranging from 2,400V to 34,500V. The design of these transformers adheres to the relevant standards set by ANSI/IEEE and NEMA.

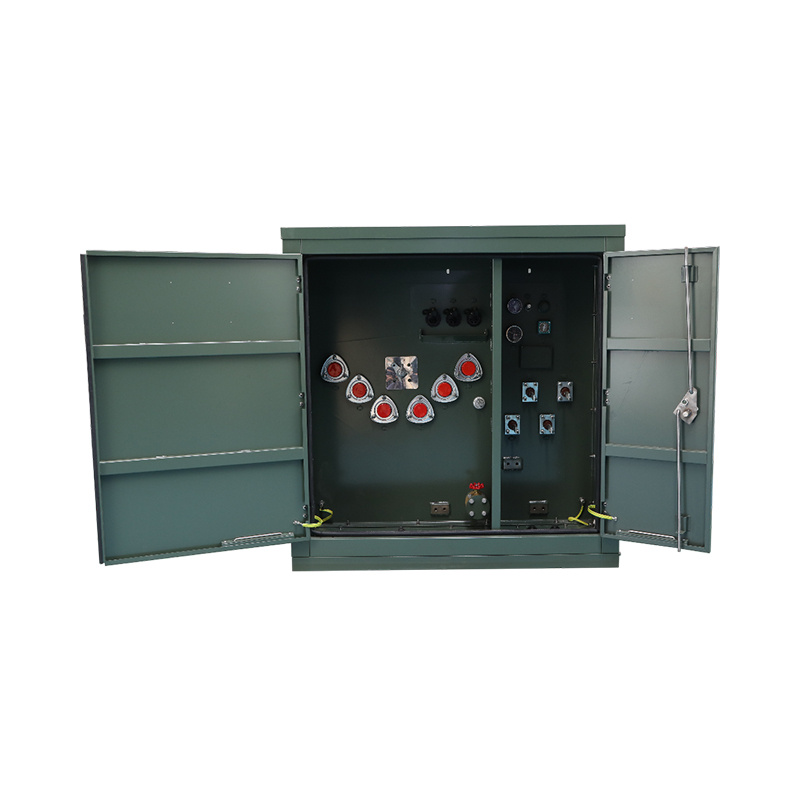

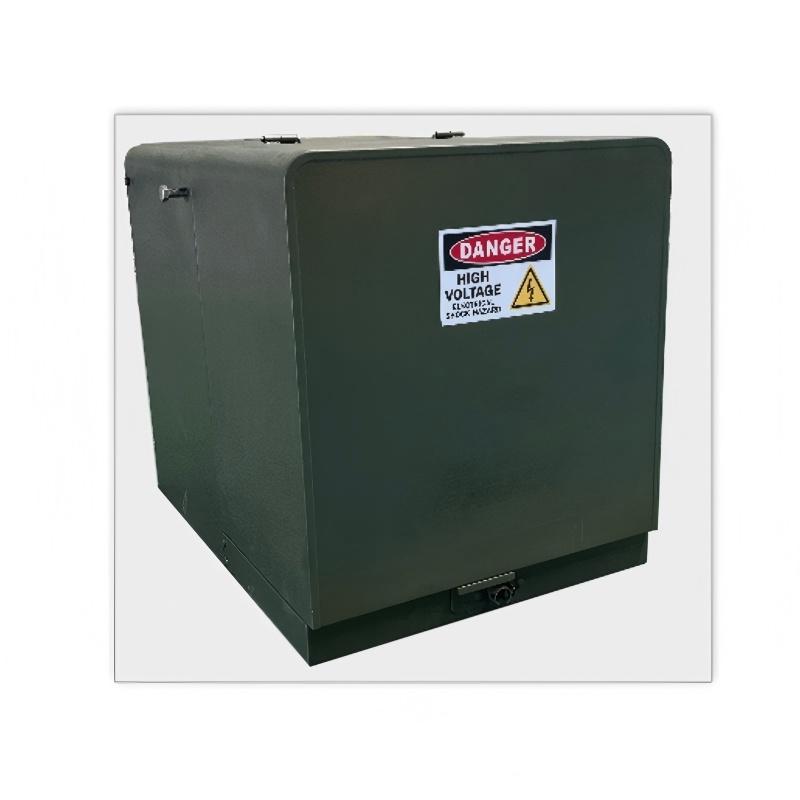

Product View and Features

  • ANSI/IEEEC57.12.34
  • Single or Three phase
  • DOE2016 or NEMA TP1 Efficiency
  • Indoor or outdoor
  • Wound core-coil construction
  • Robust steel tank and cabinet assembly
  • Dear or live front
  • 3 points door locking
  • Standard NEMA accessories
  • All standard tap configurations
  • Dual voltage available
  • Corrosion tank protection

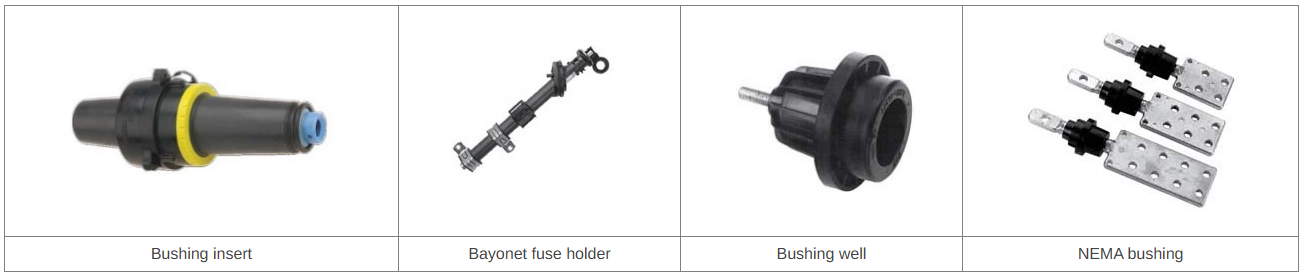

Accessories

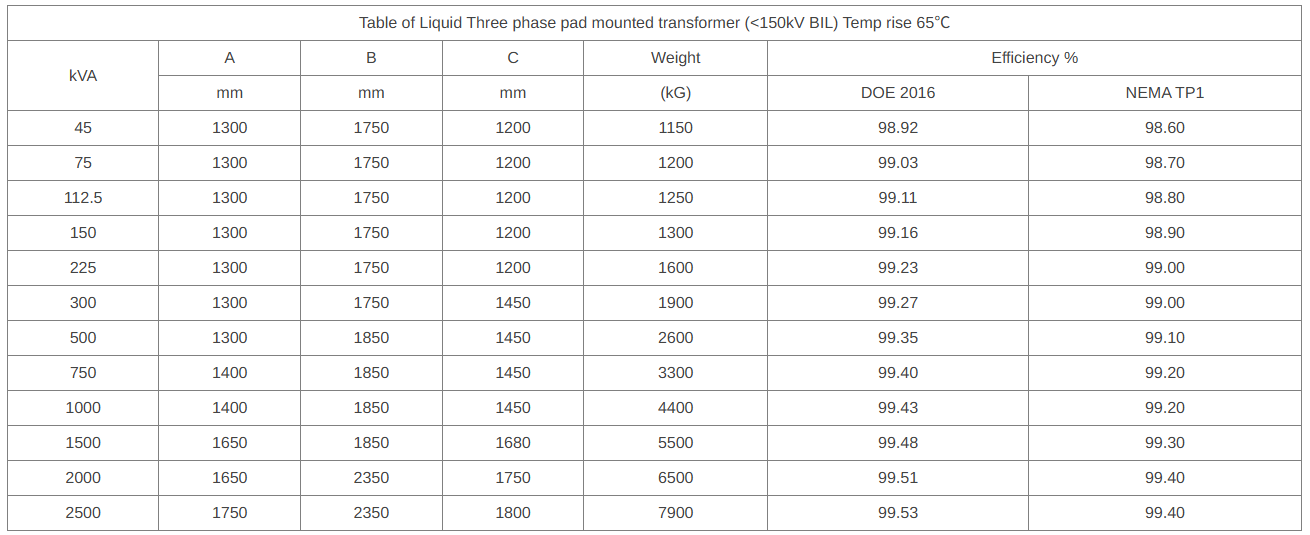

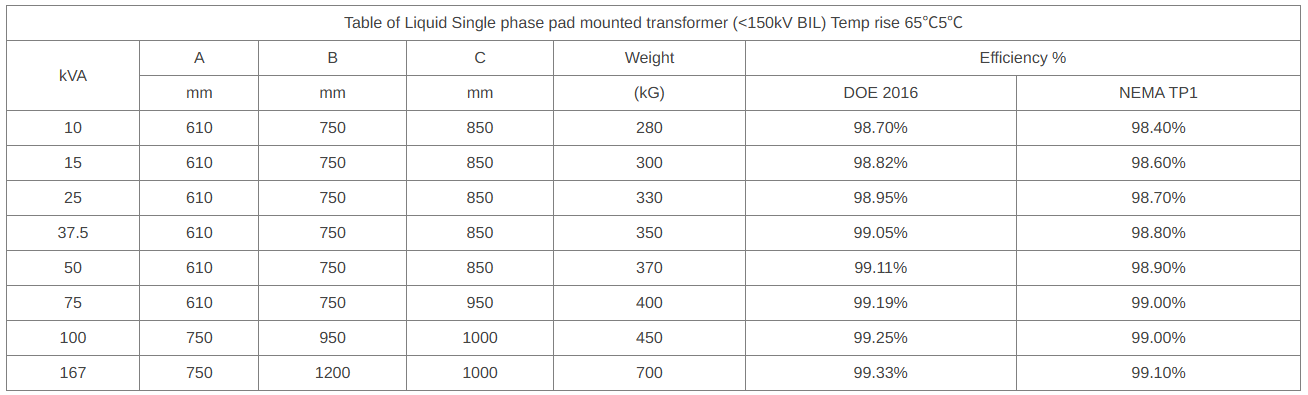

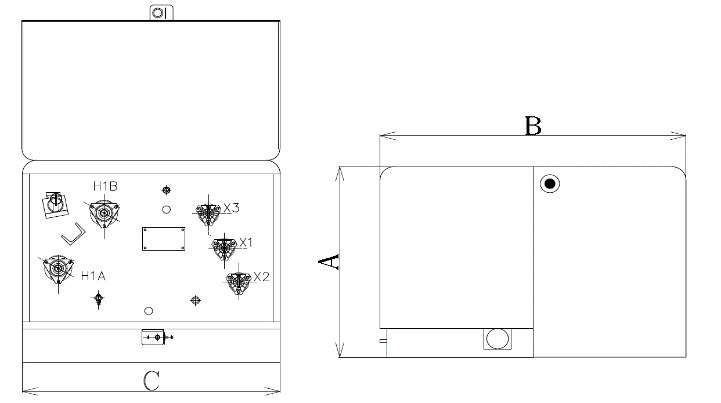

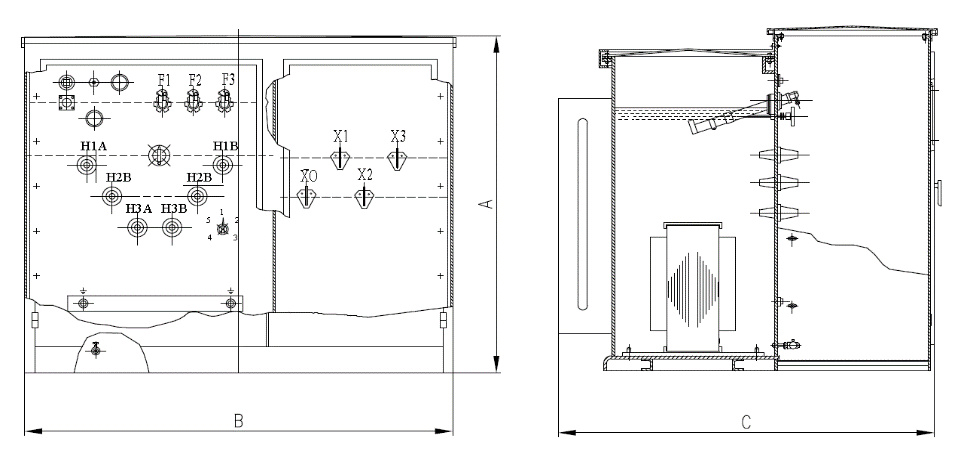

Typical Product Outline
